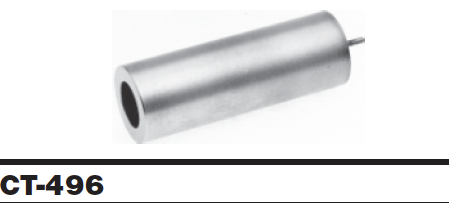

CT-496 Igniter Lead Connector Wear Gauge

Igniter lead connector wear gauge for ARP670 type 2M fittings common to PT6 leads and others. Features a calibrated pin to measure connector wear. Opposite end sized to measure neoprene grommet expansion.

Size: 21/2 in./6.35cm.

Shipping weight: 4 oz./112g.

Carton size: 31/2 in. X 11/4 in. X 11/4 in./8.89cm. X 3.18cm. X 3.18cm.

Note: Many leads incorporate type 2M and 3M connectors at opposite ends. Both the CT-496 and CT-497 gauges are recommended.

Igniter Lead Connector Wear Gauge CT-496
